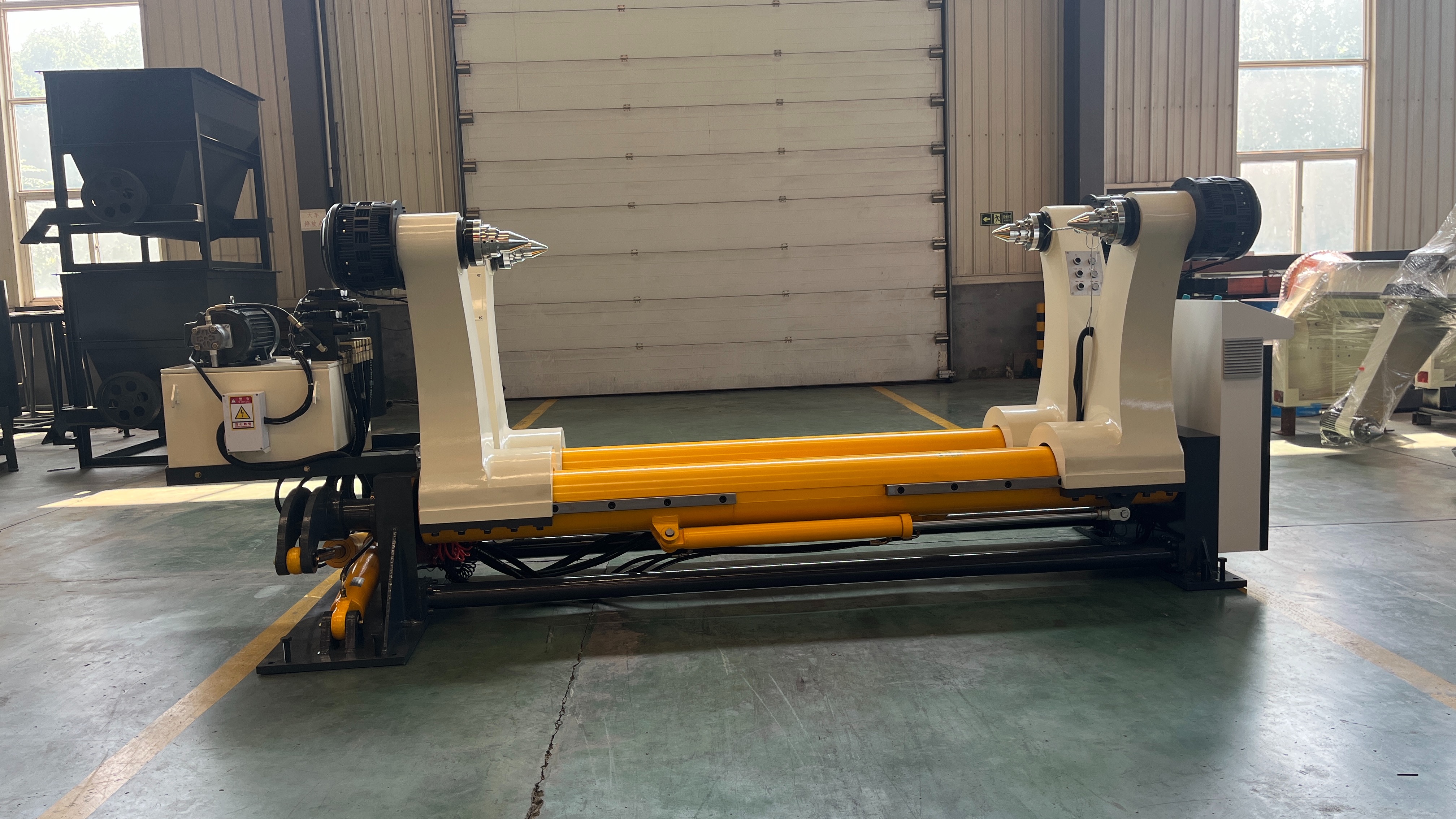

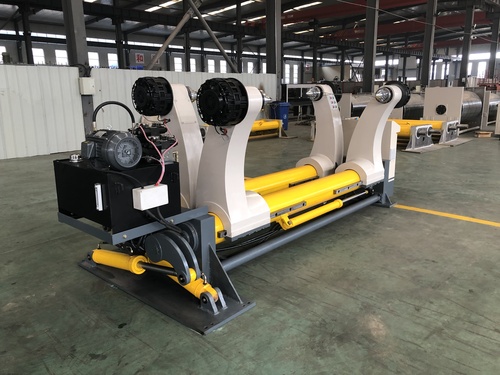

Hydraulic Mill Roll Stand
Machine Introduction
1.Clamping , moving right-left, arms up-down and paper roll revolve is motorized operated.
2.Supporting two paper rollers in the meantime, one is working, and another is for spare part.
3.Adopt multipoint braking system.
4.Adopt toothed chucks.
5.Including track and trolley for carry paper mill,electric trolley can be choosed.
Specification:
Max. working width | 2500mm |
Min. working width | 1200mm |
Max. paper mill diameter | φ1500mm |
Min. paper mill diameter | φ400mm |
Max. Support weight | V5B2.5T/V6B3.5T |
Main axis | V5Bφ242mm/V6Bφ270mm |
Max working pneumatic pressure: | 0.6-0.9Mpa |
Length of track for carry paper mill | V5B6000mm/V6B9000mm |
