LS -Paper Sheet Delivery and Side Conveyer
产品详情

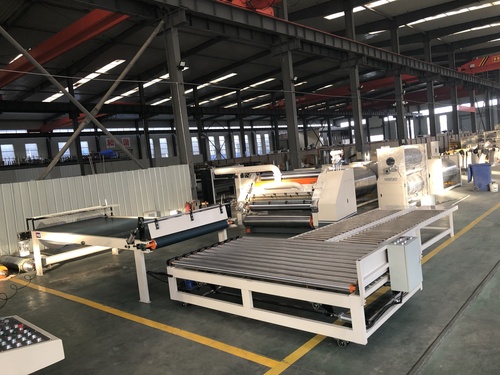

LS -Paper Sheet Delivery and Side Conveyer



1.Machine Function:

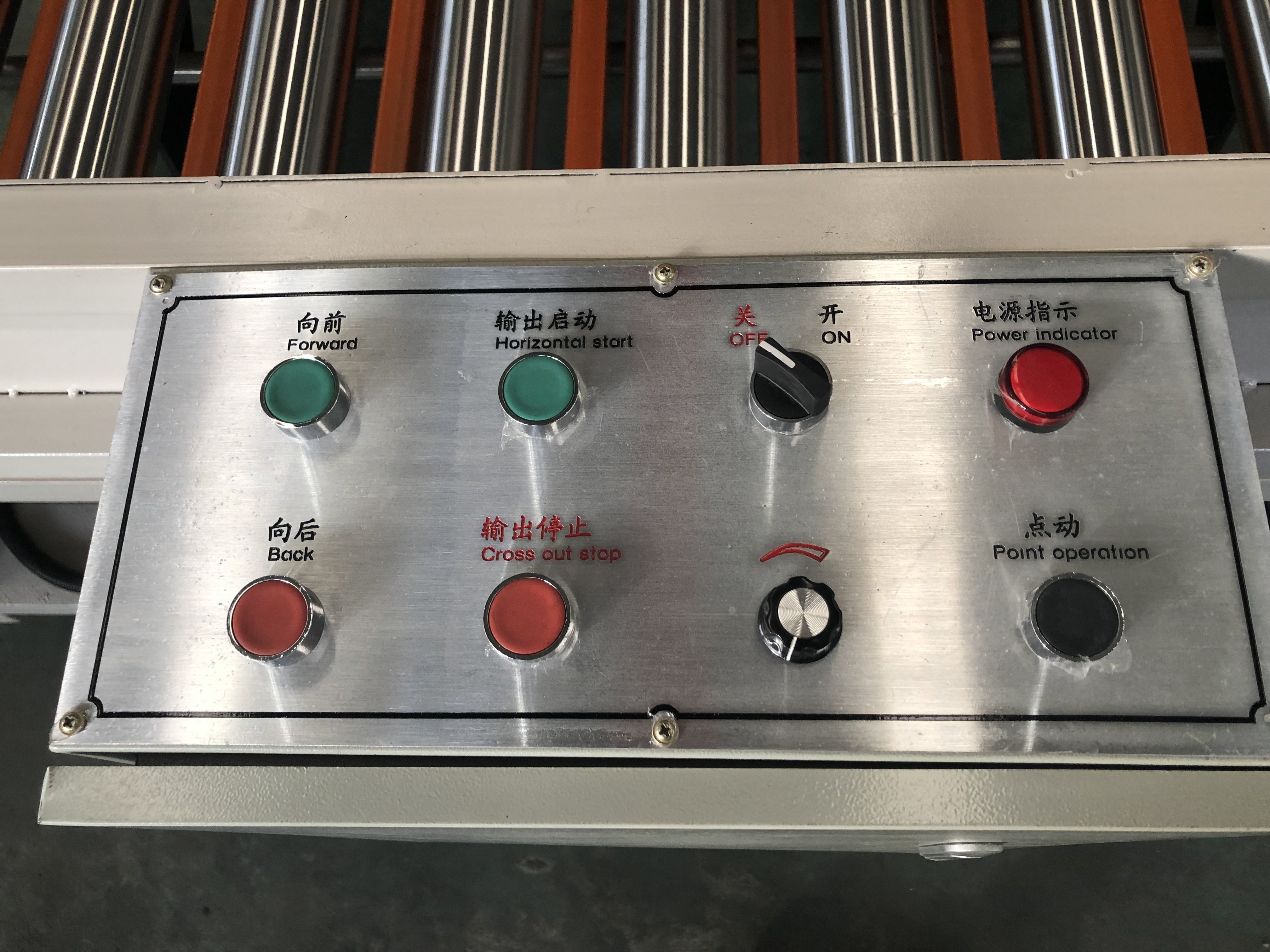

*Welding with No. 14 channel steel, electric adjustment of cardboard size, pneumatic control of horizontal output cardboard, conveyor speed electrically adjustable

*The cardboard are removed by the foot switch control when the number or height of sheets reach the needs

*Longitudinal paper is conveyed by wide conveyor belt

2.Technical Parameter:



          Working Width

1800mm

       Design Speed

120m/min

       Working Speed

100m/min

      MaxLength of Stacking

3000mm

     Max Height of Stacking

200mm

     Main Feeding Frequency Motor

3KW

      Transverse Direction Motor

1.5KW

       Traveling Motor

1.5KW
